Vermeer T-800 B Parts Lists Manual

SECTIONS 1 & 2

Vermeer T-800 B Parts Lists Manual

Vermeer T-800 B Parts Lists Manual




Vermeer T-800 B Trencher Parts Lists

Vermeer T-800 B Trencher Parts Lists

Vermeer T-800 Trencher Parts Lists Manual Operation - Index Page

Vermeer T-800 Trencher Parts Lists Manual Operation - Index Page

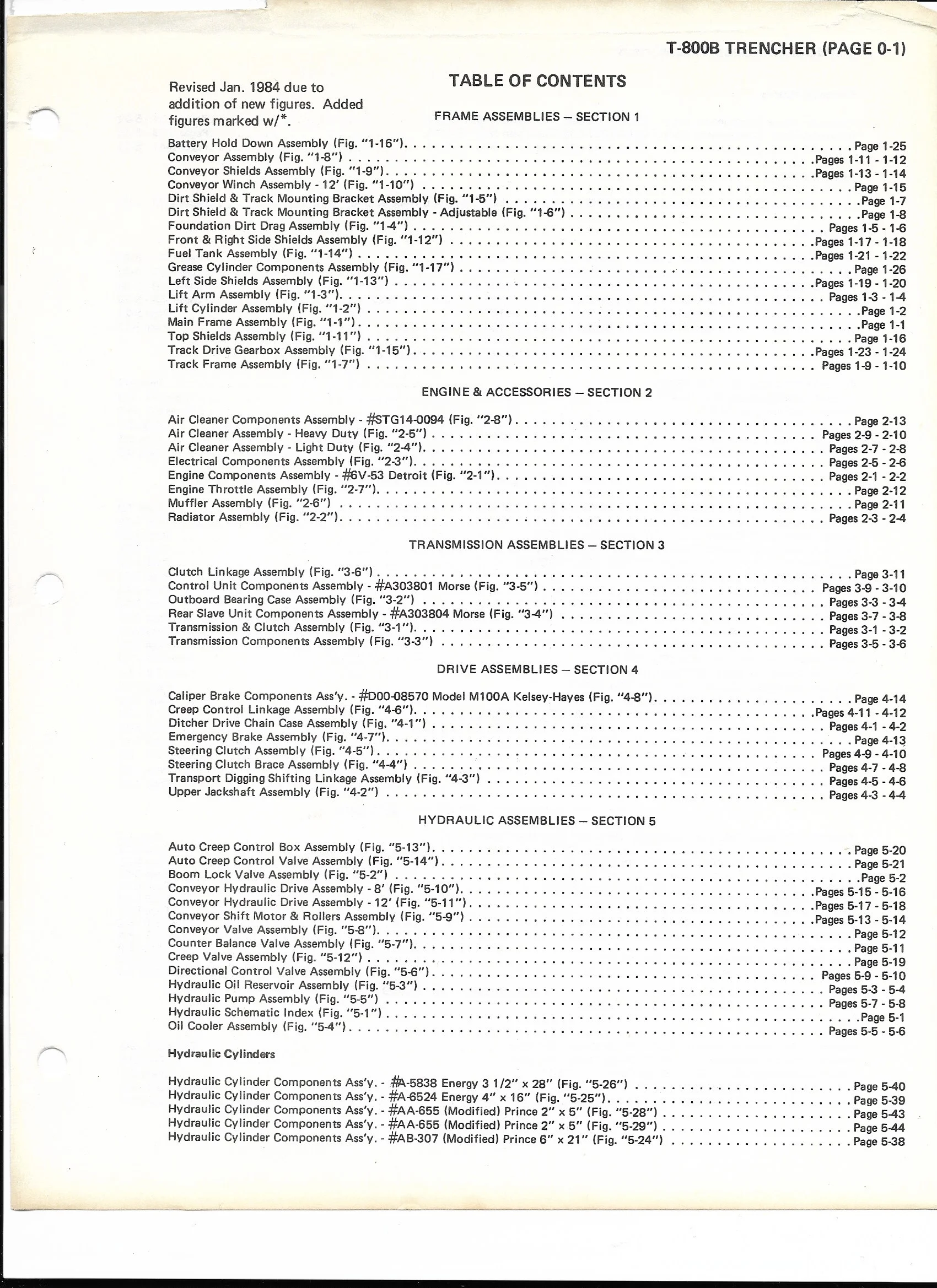

Vermeer 800 B Trencher - TABLE OF CONTENTS    Trencher Rental 415-712-4782

Vermeer 800 B Trencher - TABLE OF CONTENTS

Trencher Rental 415-712-4782

Vermeer T-800B Trencher Parts Lists - TABLE OF CONTENT    Trencher Rental 415-712-4782 Rock Trenching

Vermeer T-800B Trencher Parts Lists - TABLE OF CONTENT

Trencher Rental 415-712-4782 Rock Trenching

Trencher Rental Vermeer 800B Parts Sales

Trencher Rental Vermeer 800B Parts Sales

Vermeer T-800B Trencher - MAIN FRAME ASSEMBLY

Vermeer T-800B Trencher - MAIN FRAME ASSEMBLY

Vermeer T-800 B Trencher - LIFT CYLINDER ASSEMBLY

Vermeer T-800 B Trencher - LIFT CYLINDER ASSEMBLY

Vermeer T-800 B - LIFT CYLINDER ASSEMBLY

Vermeer T-800 B - LIFT CYLINDER ASSEMBLY

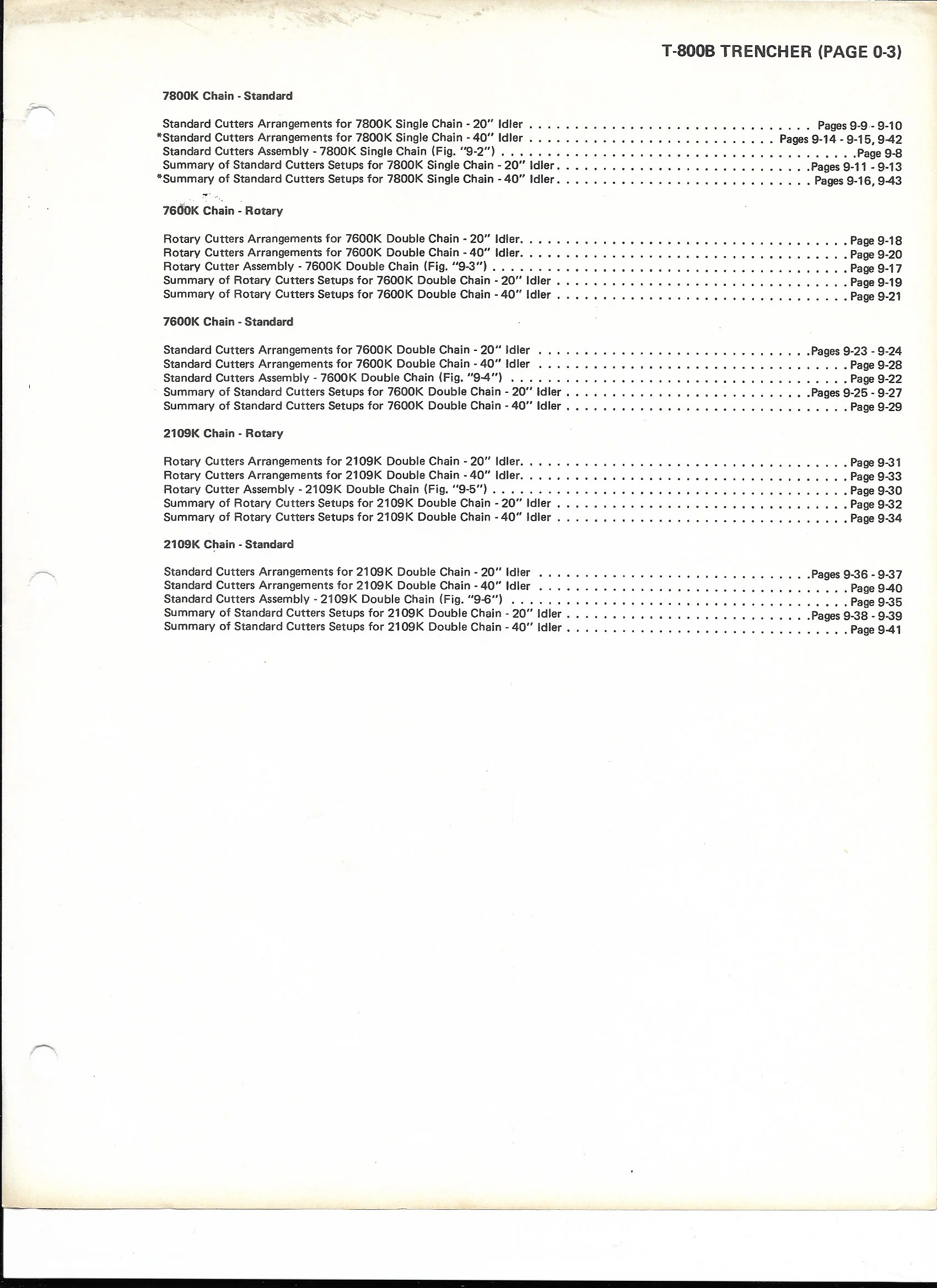

Vermeer T-800 Parts Manual - TABLE OF CONTENTS

Vermeer T-800 Parts Manual - TABLE OF CONTENTS

VERMEER T-800 B - FOUNDATION DIRT DRAG ASSEMBLY

VERMEER T-800 B - FOUNDATION DIRT DRAG ASSEMBLY

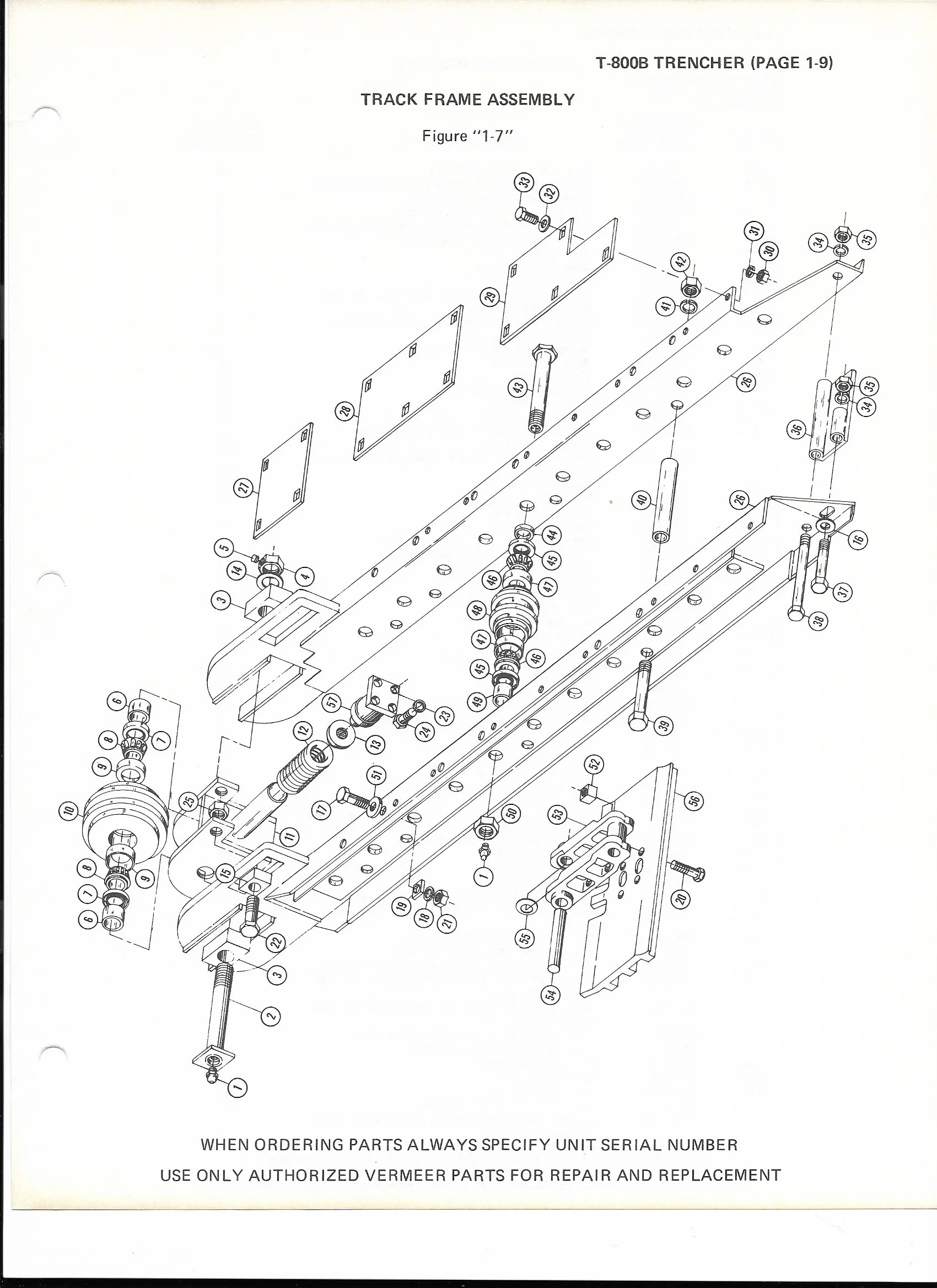

VERMEER T-800 - TRACK FRAME ASSEMBLY

VERMEER T-800 - TRACK FRAME ASSEMBLY

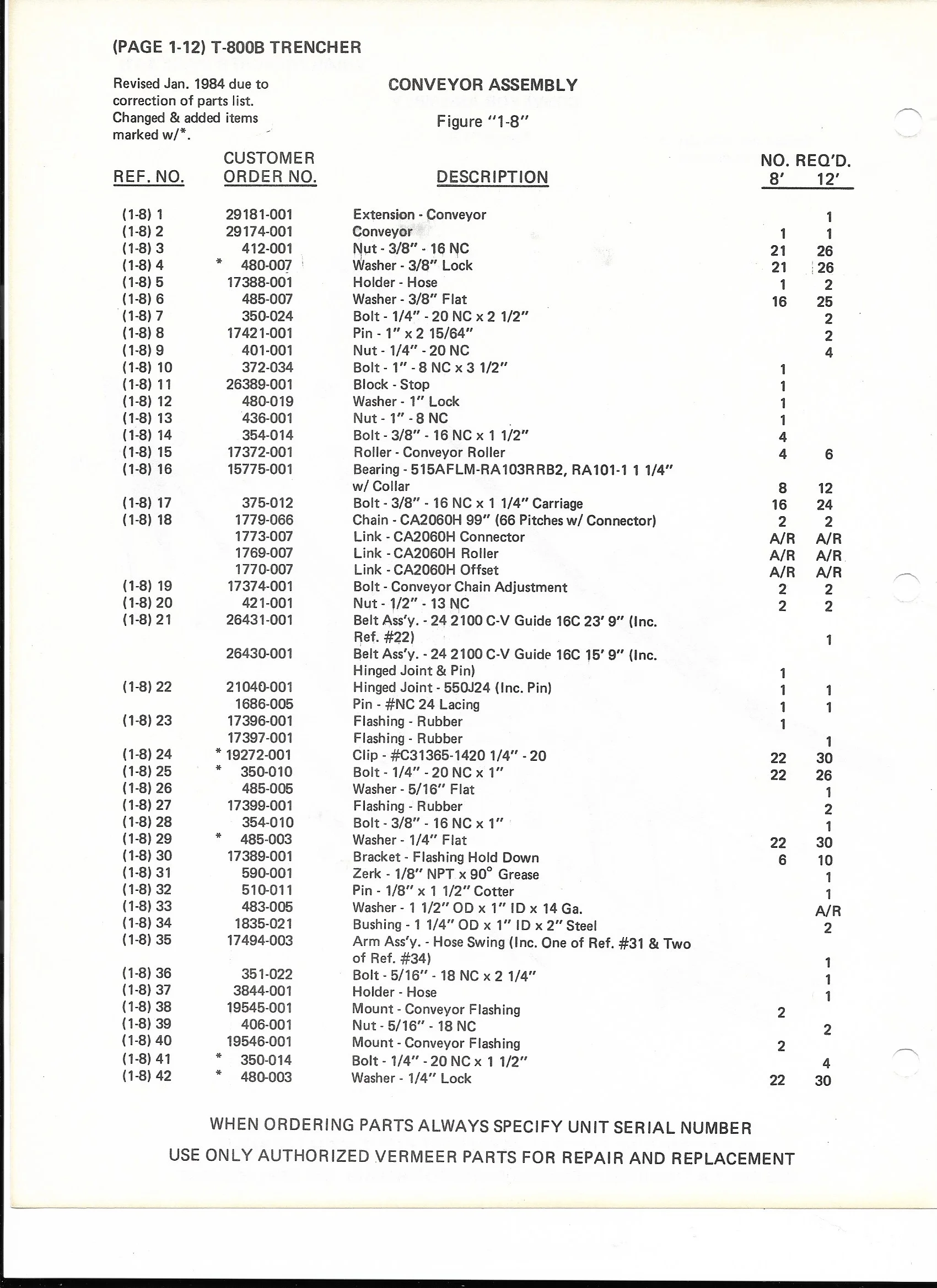

VERMEER T-800 - CONVEYOR ASSEMBLY

VERMEER T-800 - CONVEYOR ASSEMBLY

VERMEER T-800 - DIRT SHIELDS ASSEMBLY

VERMEER T-800 - DIRT SHIELDS ASSEMBLY

VERMEER T-800 - CONVEYOR WINCH ASSEMBLY

VERMEER T-800 - CONVEYOR WINCH ASSEMBLY

VERMEER T-800 - TOP SHIELDS ASSEMBLY

VERMEER T-800 - TOP SHIELDS ASSEMBLY

VERMEER T-800 - FRONT AND RIGHT SIDE ASSEMBLY

VERMEER T-800 - FRONT AND RIGHT SIDE ASSEMBLY

VERMEER T-800 -  LEFT SIDE SHIELDS ASSEMBLY

VERMEER T-800 - LEFT SIDE SHIELDS ASSEMBLY

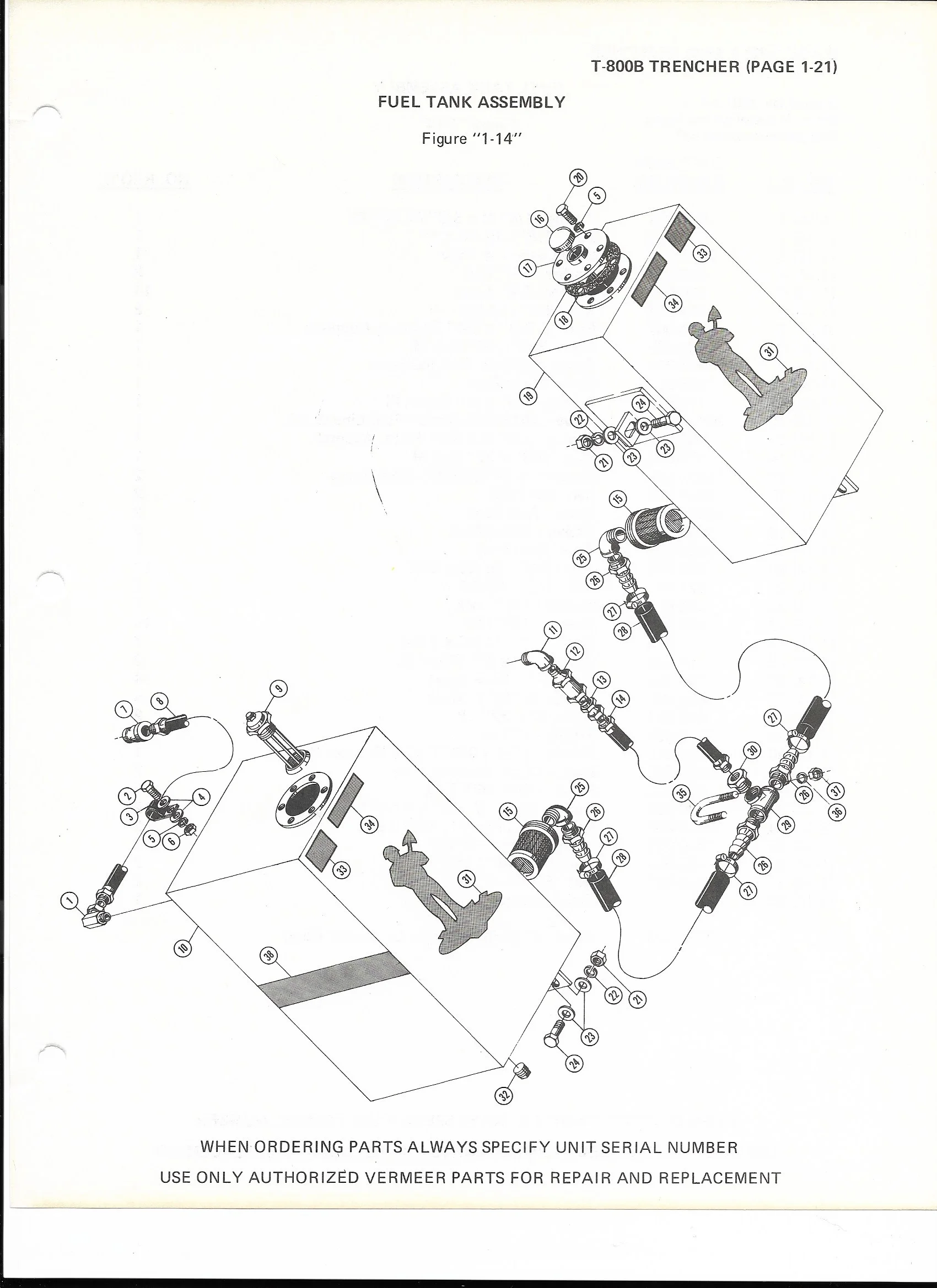

VERMEER T-800 - FUEL TANK ASSEMBLY

VERMEER T-800 - FUEL TANK ASSEMBLY

VERMEER T-800 - TRACK GEARBOX ASSEMBLY

VERMEER T-800 - TRACK GEARBOX ASSEMBLY

VERMEER T-800 - BATTERY HOLD DOWN ASSEMBLY

VERMEER T-800 - BATTERY HOLD DOWN ASSEMBLY

VERMEER T-800 - GREASE CYLINDER ASSEMBLY

VERMEER T-800 - GREASE CYLINDER ASSEMBLY

VERMEER T-800 CHAIN TRENCHER    #6V-53 DETROIT DEISEL COMPONENTS    DETROIT DEISEL MECHANIC

VERMEER T-800 CHAIN TRENCHER

#6V-53 DETROIT DEISEL COMPONENTS

DETROIT DEISEL MECHANIC

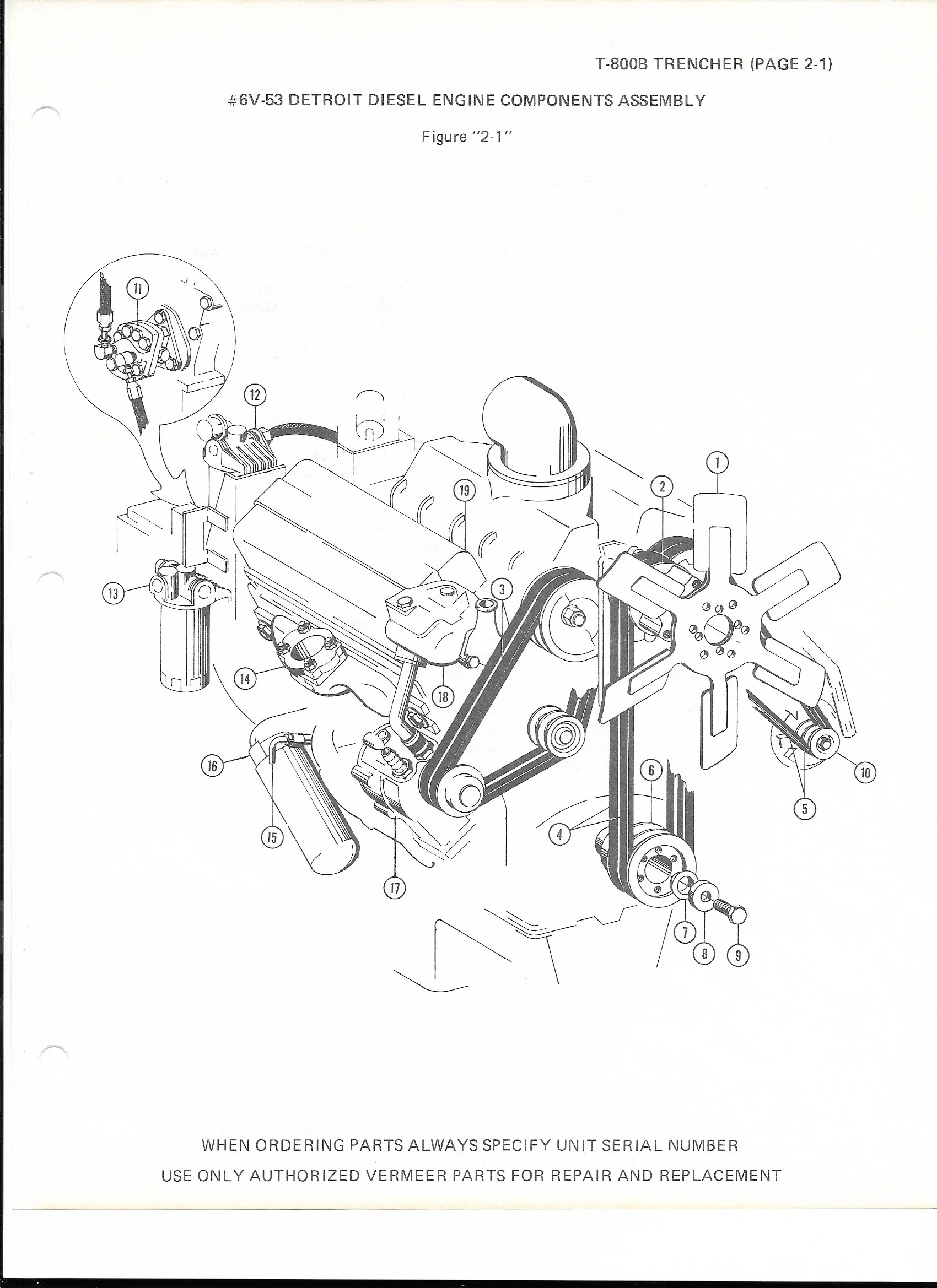

VERMEER T-800 - #6V-53 DETROIT DEISEL COMPONENTS    ROCK TRENCHING 415-712-4782

VERMEER T-800 - #6V-53 DETROIT DEISEL COMPONENTS

ROCK TRENCHING 415-712-4782

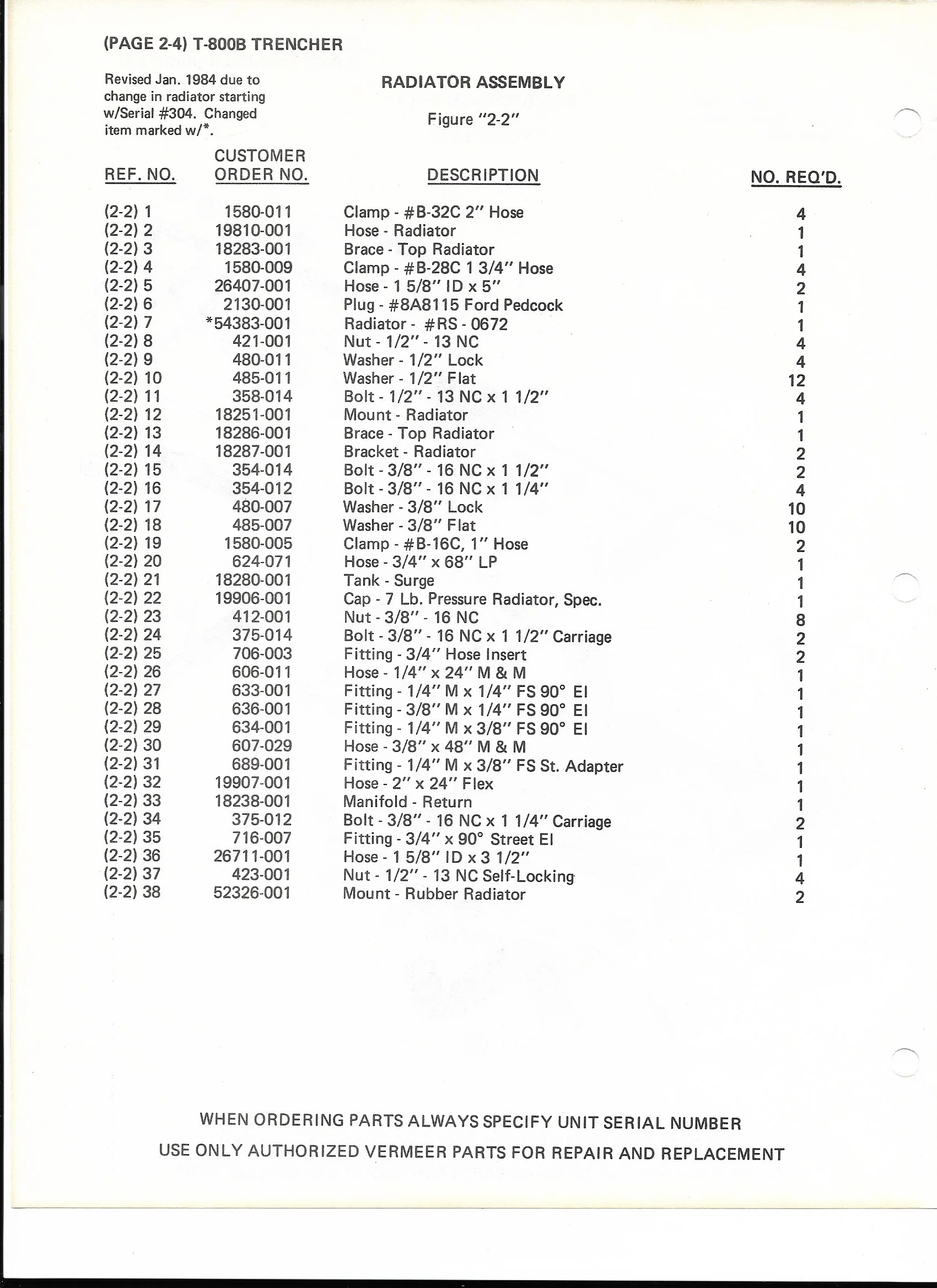

VERMEER T-800 - RADIATOR ASSEMBLY    #6V-53 DETROIT DEISEL

VERMEER T-800 - RADIATOR ASSEMBLY

#6V-53 DETROIT DEISEL

VERMEER T-800 - RADIATOR ASSEMBLY

VERMEER T-800 - RADIATOR ASSEMBLY

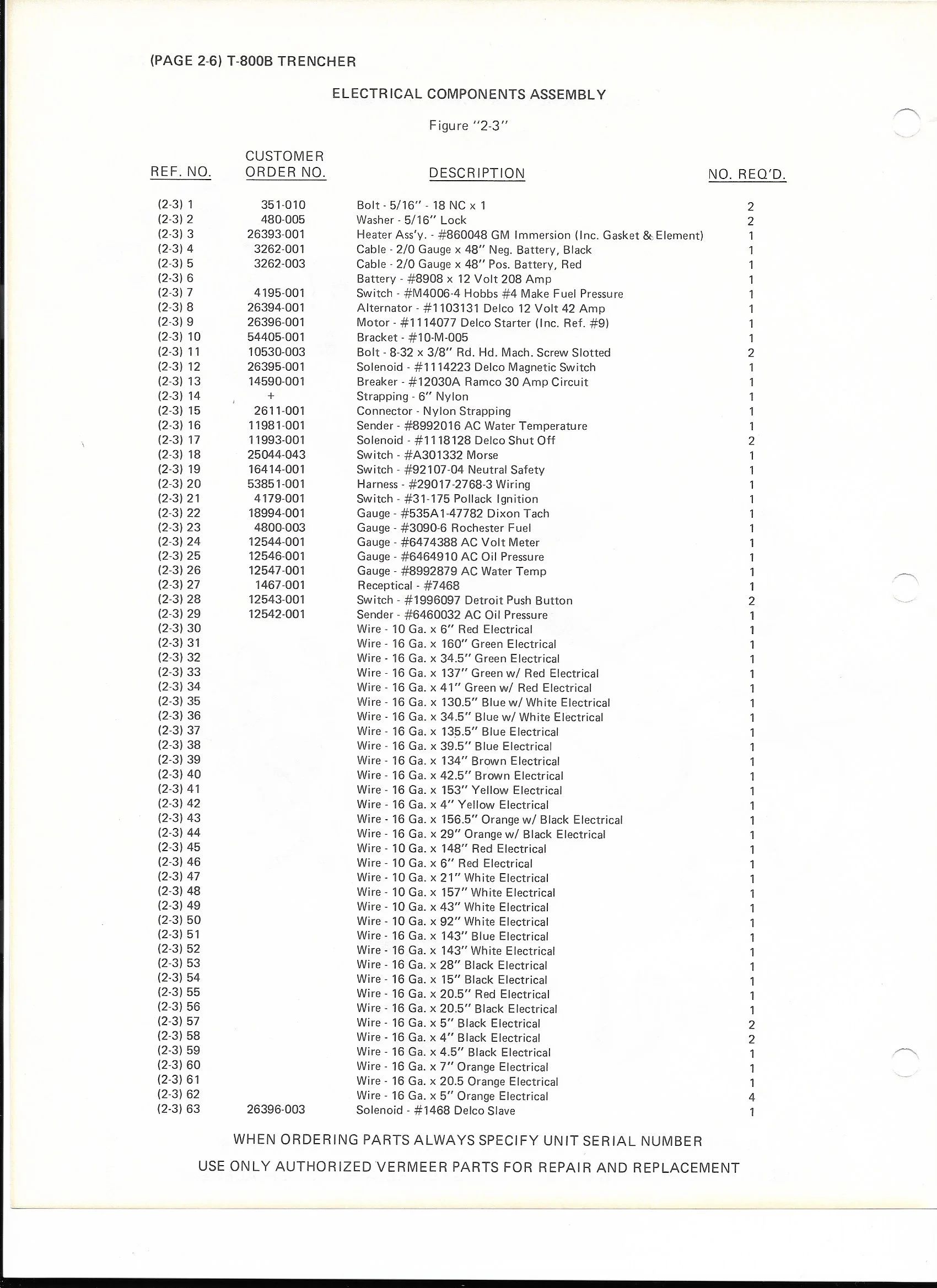

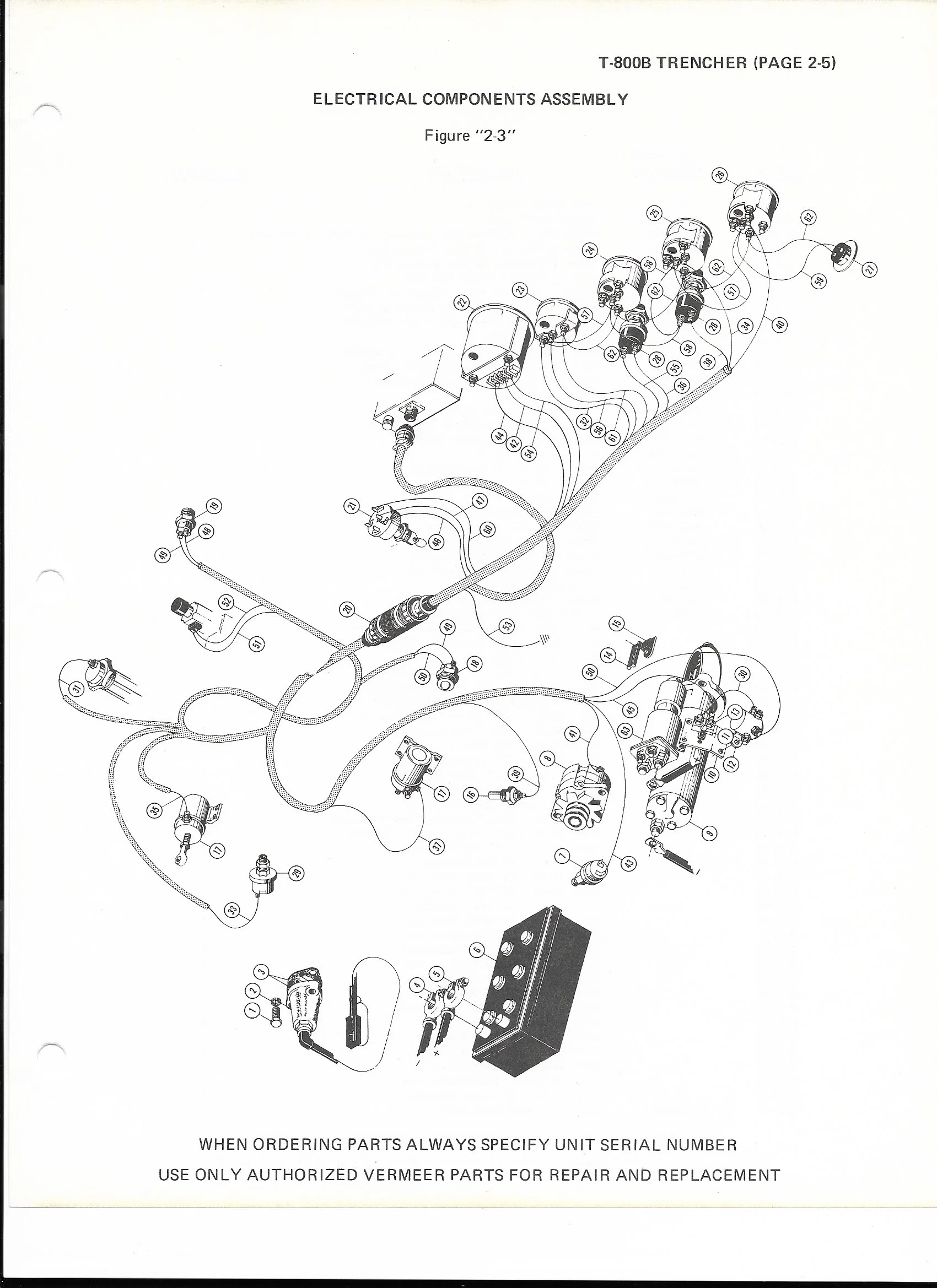

VERMEER T-800 - ELECTRICAL COMPONENTS ASSEMBLY    TRENCHER RENTAL

VERMEER T-800 - ELECTRICAL COMPONENTS ASSEMBLY

TRENCHER RENTAL

VERMEER T-800 - ELECTRICAL COMPONENTS ASSEMBLY    TRENCHER RENTAL

VERMEER T-800 - ELECTRICAL COMPONENTS ASSEMBLY

TRENCHER RENTAL

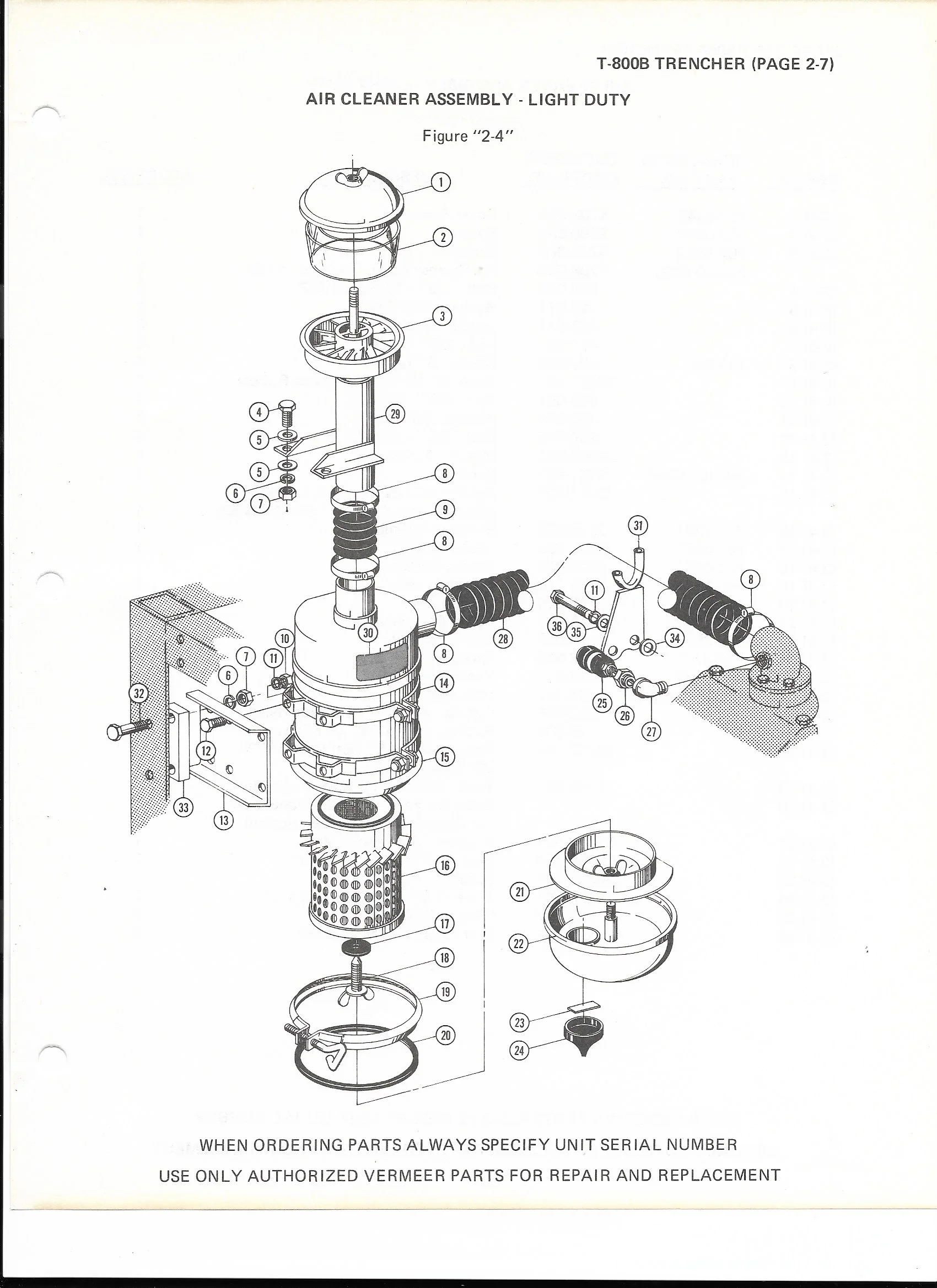

Vermeer 800 Trencher - AIR CLEANER ASSEMBLY - LIGHT DUTY

Vermeer 800 Trencher - AIR CLEANER ASSEMBLY - LIGHT DUTY

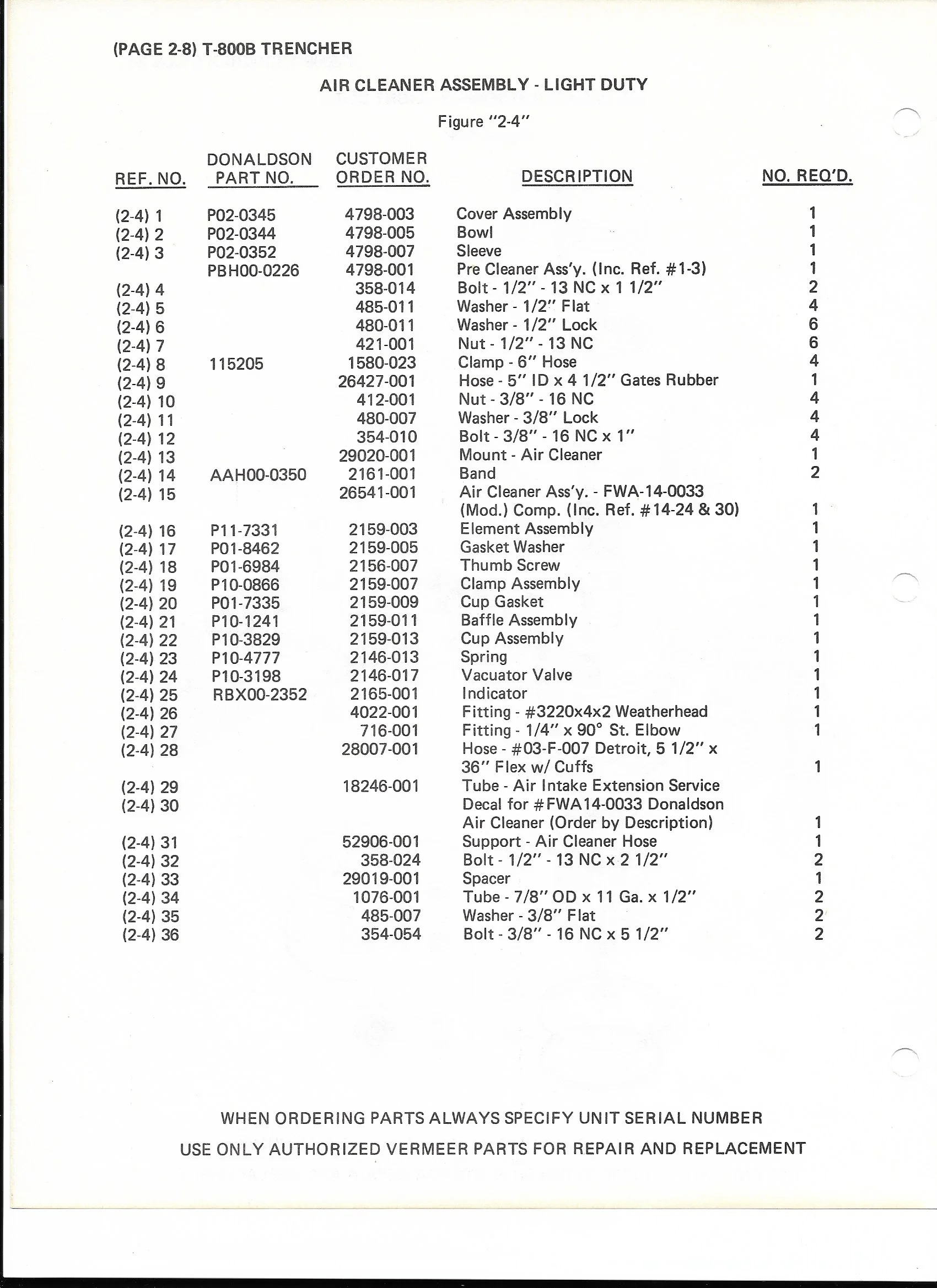

Vermeer 800 Trencher - AIR CLEANER ASSEMBLY - LIGHT DUTY

Vermeer 800 Trencher - AIR CLEANER ASSEMBLY - LIGHT DUTY

Vermeer 800 Trencher - AIR CLEANER HEAVY DUTY

Vermeer 800 Trencher - AIR CLEANER HEAVY DUTY

Vermeer 800 Chain Trencher - AIR CLEANER ASSEMBLY -HEAVY DUTY

Vermeer 800 Chain Trencher - AIR CLEANER ASSEMBLY -HEAVY DUTY

Vermeer 800 Rock Trencher - MUFFLER ASSEMBLY

Vermeer 800 Rock Trencher - MUFFLER ASSEMBLY

Vermeer 800 Dirt Trencher - ENGINE THROTTLE ASSEMBLY    #SPG1004CP SUPERIOR    #D300837-3-146 MORSE CONTROL

Vermeer 800 Dirt Trencher - ENGINE THROTTLE ASSEMBLY

#SPG1004CP SUPERIOR

#D300837-3-146 MORSE CONTROL

Vermeer 800 Chain Trencher - ENGINE THROTTLE ASSEMBLY

Vermeer 800 Chain Trencher - ENGINE THROTTLE ASSEMBLY

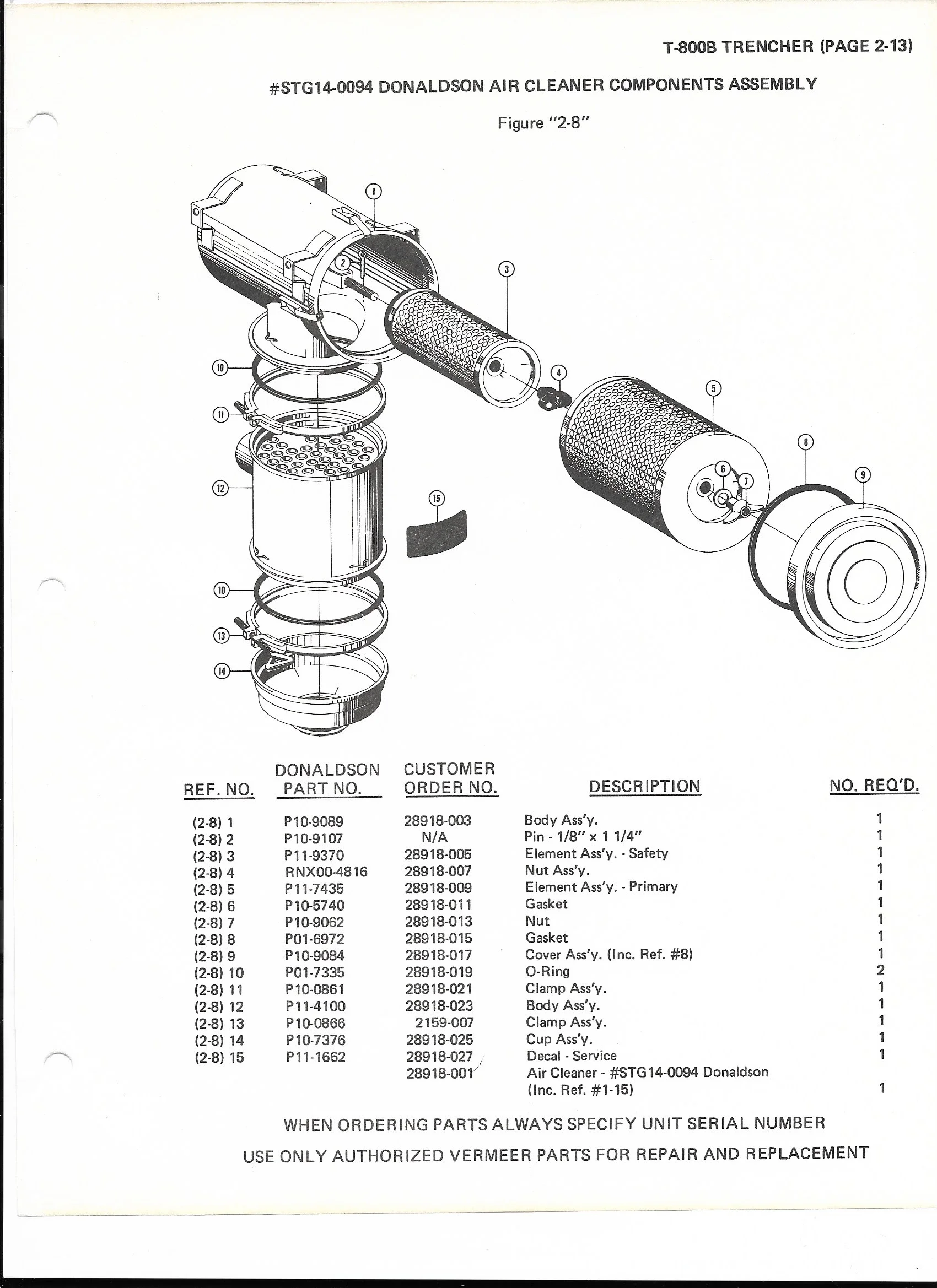

VERMEER ROCK TRENCHER T-400, T-600, T-800, T-1055, T-955, T-855, T-755, T-655, T-555, T-455      DONALSON AIR CLEANER COMPONENTS ASSEMBLY    #STG14-0094

VERMEER ROCK TRENCHER T-400, T-600, T-800, T-1055, T-955, T-855, T-755, T-655, T-555, T-455

DONALSON AIR CLEANER COMPONENTS ASSEMBLY

#STG14-0094
