Vermeer 800 Parts Manual

Section 3,4, & 5

Vermeer 800 Rock Trencher California    ROCK TRENCHING

Vermeer 800 Rock Trencher California

ROCK TRENCHING

VERMEER T-800 B TRENCHER    PARTS MANUAL SECTIONS 3.4. & 5    ROCK TRENCHING

VERMEER T-800 B TRENCHER

PARTS MANUAL SECTIONS 3.4. & 5

ROCK TRENCHING

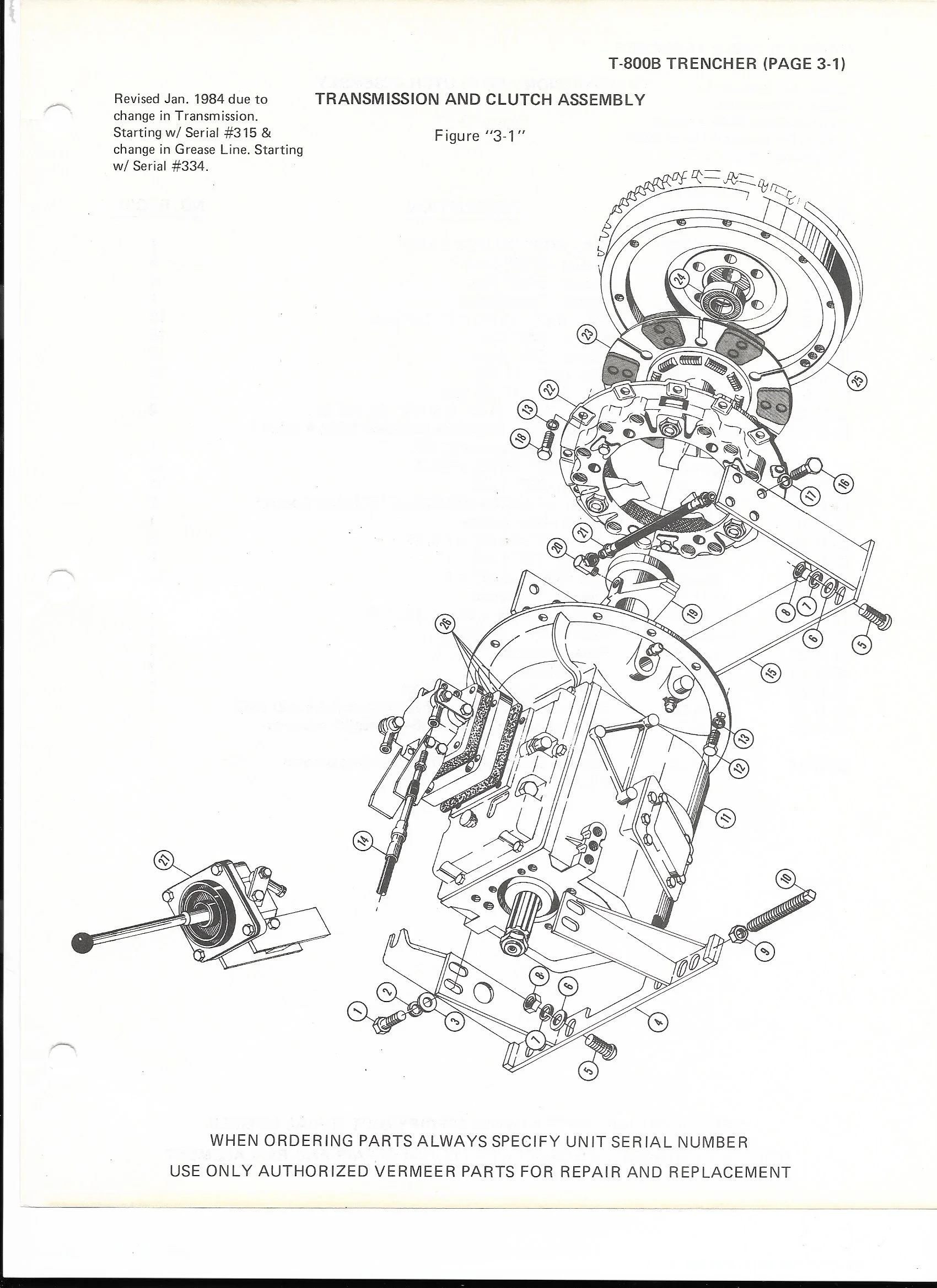

VERMEER 800 TRENCHER - TRANSMISSION AND CLUTCH ASSEMBLY    SPICER TRANSMISSION #301309-86 MODEL 5552A    FLYWHEEL ASSEMBLY #5125577 DETROIT (SEA #2) (NC)

VERMEER 800 TRENCHER - TRANSMISSION AND CLUTCH ASSEMBLY

SPICER TRANSMISSION #301309-86 MODEL 5552A

FLYWHEEL ASSEMBLY #5125577 DETROIT (SEA #2) (NC)

VERMEER 800 CHAIN TRENCHER - TRANSMISSION AND CLUTCH ASSEMBLY    SPICER TRANSMISSION #301309-86 MODEL 5552-A    CONTROL UNIT - #A303801 MORSE

VERMEER 800 CHAIN TRENCHER - TRANSMISSION AND CLUTCH ASSEMBLY

SPICER TRANSMISSION #301309-86 MODEL 5552-A

CONTROL UNIT - #A303801 MORSE

VERMEER 800 TRENCHER - OUTBOARD BEARING CASE ASSEMBLY    SHEAVE 8GR-5V-800    BELT ASSEMBLY - #9386-4160 4 BELT 5V1600 O.C. 160” POWER BAND SET OF 2

VERMEER 800 TRENCHER - OUTBOARD BEARING CASE ASSEMBLY

SHEAVE 8GR-5V-800

BELT ASSEMBLY - #9386-4160 4 BELT 5V1600 O.C. 160” POWER BAND SET OF 2

VERMEER T-800 TRENCHING PARTS MANUAL - OUTBOARD BEARING CASE ASSEMBLY    BEARING #22215 LB/CO 3”    SEAL #455144 NATIONAL

VERMEER T-800 TRENCHING PARTS MANUAL - OUTBOARD BEARING CASE ASSEMBLY

BEARING #22215 LB/CO 3”

SEAL #455144 NATIONAL

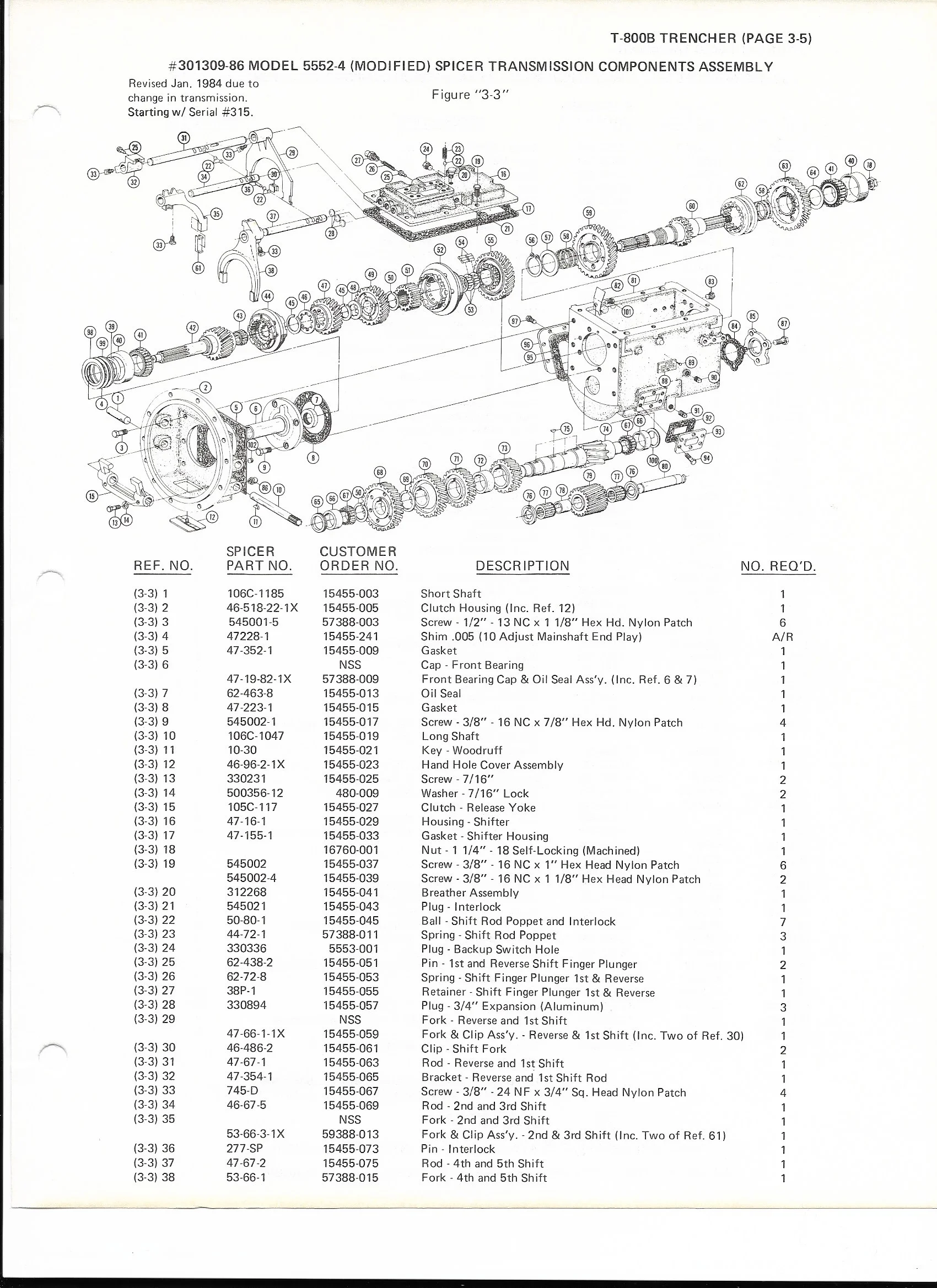

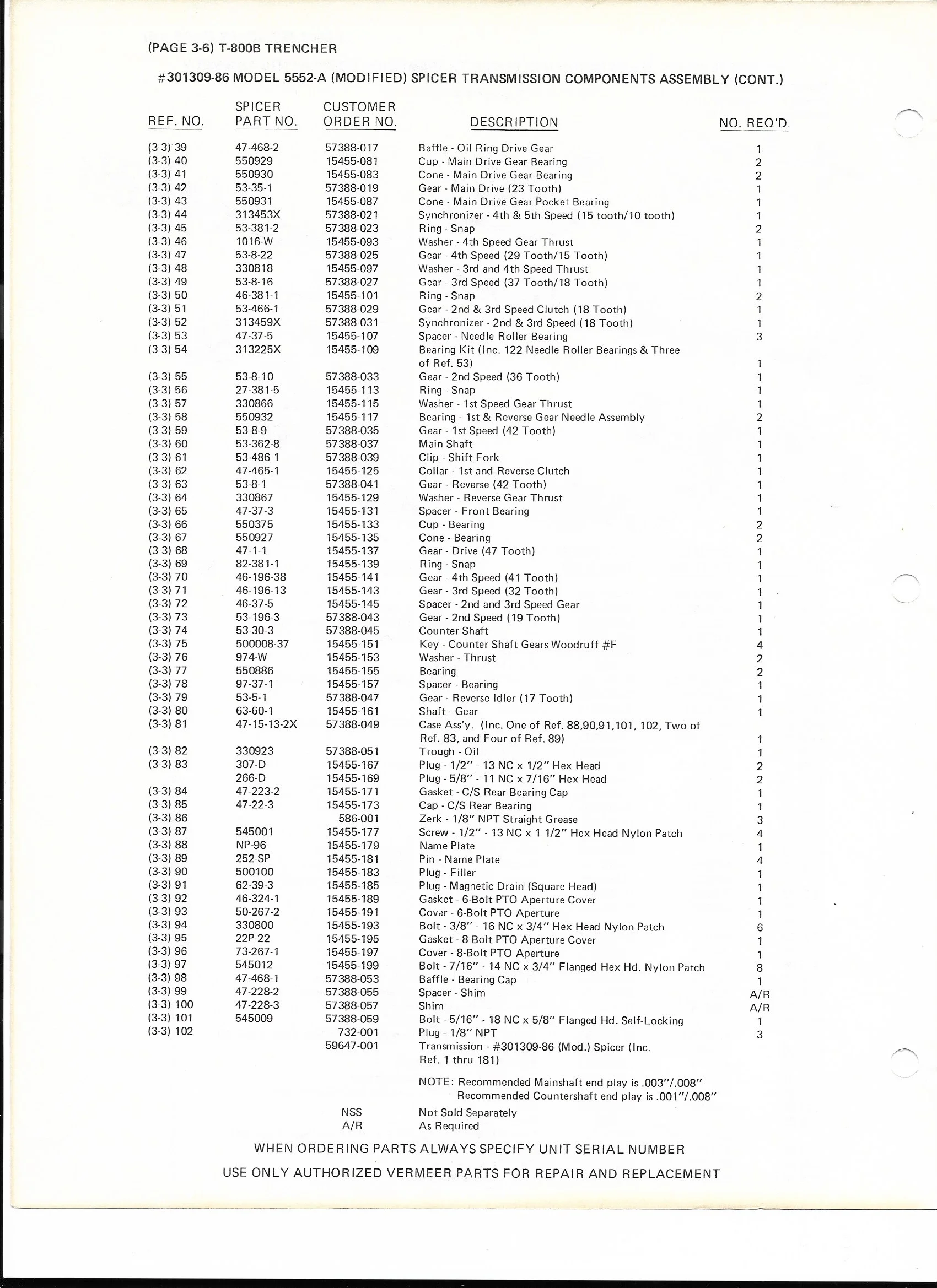

VERMEER 800 ROCK TRENCHER - SPICER TRANSMISSION COMPONENTS ASSEMBLY    SPICER #301309-86 MODEL 5552-4

VERMEER 800 ROCK TRENCHER - SPICER TRANSMISSION COMPONENTS ASSEMBLY

SPICER #301309-86 MODEL 5552-4

VERMEER 800 CHAIN TRENCHER - SPICER TRANSMISSION COMPONENTS ASSEMBLY    SPICER #301309-86 MODEL 5552-4

VERMEER 800 CHAIN TRENCHER - SPICER TRANSMISSION COMPONENTS ASSEMBLY

SPICER #301309-86 MODEL 5552-4

VERMEER T-800 ROCK TRENCHER    #A303804 MORSE REAR SLAVE UNIT COMPONENTS ASSEMBLY

VERMEER T-800 ROCK TRENCHER

#A303804 MORSE REAR SLAVE UNIT COMPONENTS ASSEMBLY

VERMEER T-800 ROCK SAW    #A303804 MORSE REAR SLAVE UNIT COMPONENTS ASSEMBLY    SPICER #301309-86 MODEL 5552-4

VERMEER T-800 ROCK SAW

#A303804 MORSE REAR SLAVE UNIT COMPONENTS ASSEMBLY

SPICER #301309-86 MODEL 5552-4

VERMEER 800 TRENCHER    #A303801 MORSE CONTROL UNIT COMPONENTS ASSEMBLY

VERMEER 800 TRENCHER

#A303801 MORSE CONTROL UNIT COMPONENTS ASSEMBLY

VERMEER 800 ROCK SAW    #A303801 MORSE CONTROL UNIT COMPONENTS ASSEMBLY

VERMEER 800 ROCK SAW

#A303801 MORSE CONTROL UNIT COMPONENTS ASSEMBLY

VERMEER T-800 TRENCHER - CLUTCH LINKAGE ASSEMBLY    SPICER ADJUSTMENT ARM #310233X

VERMEER T-800 TRENCHER - CLUTCH LINKAGE ASSEMBLY

SPICER ADJUSTMENT ARM #310233X
